Version 9.0
Brochure.

The Lathe back-plotter will save you an immeasurable amount of time in proving out your programs. It will also help you to avoid those costly crashes.



There is no other back-plotter on the market today that compares to the Shop-Talk Back-Plotters.

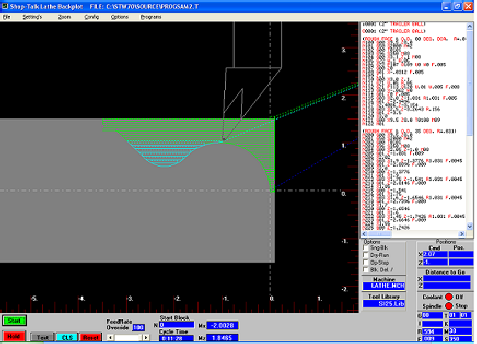

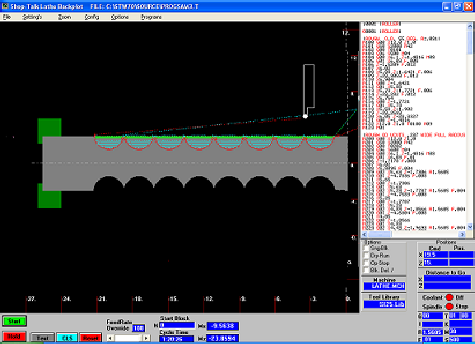

The most powerful feature is the split screen function. This allows you to view the tool animation, the code and edit all simultaneously making it really easy to find X or Z command point errors. While in split screen mode each line is highlighted during the plot to make it easy to view every move on the screen.



A feed rate override bar allows you to control the animation speed on the screen, or you may also run in single block or dry run mode.



Shop-Talk supports full tool animation not just basic linear and circular commands. Unlike other tool verification software limited to FANUC Can Cycles, Shop-Talk is also compatible with Okuma and Fagor can cycles. Shop-Talk also supports G-Codes for



YASNAC, MITSUBISHI, FAGOR, OKUMA, SEIMANS, ACRAMATIC, GE & AB and others.



CNC Lathe Tool Simulation & Verification Back Plotter
